| Impedance(Ω) 100MHz | RDC(Ω)max | IDC(mA)max | Rated Volt |
|---|---|---|---|
| 260±20% | 0.4 | 300 | 50 |
| IR(MΩ)min | Operating Temperature | Size | |
| 10 | -40~+125°C | 2.0*1.25*1.25 |
Featured as SPT + CMF solution
Smaller Size
Combine 4 SPT and 4 CMF as a set can be replace for 1 port of traditional Lan filter. It would be reduce the space by 50%, so that engineers can consider more space usage when designing a new product, or even co-layout with LAN Filter.
Flexible Application
Different from traditional Lan filter can only on top layer , SPT + CMF able to choose either bottom or top side.
Stabler Characteristic
The fully automated process provides stabler quality of components which bring our magnetic variability would be smaller.

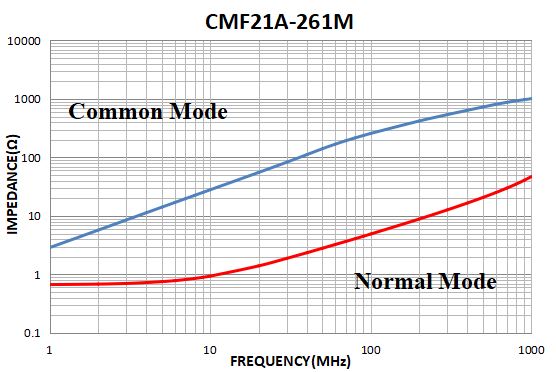

Electrical Curve
