| Speed Rate | PoE | Max. Current | Inductance (8mA) |
|---|---|---|---|
| 10G | non | NA | 120uH |
| Insertion loss (dB)max. | Return loss (dB)min. | HIPOT @1mA | Operating Temprature |
| 1-400MHz : -1.2 | 500MHz : -12 | 2250Vdc 1min | Industrial(-40~85) |
| Size | Packing | Matched CMF | |
| 3.6*3.6*3.8 | T/R | CMF161 |

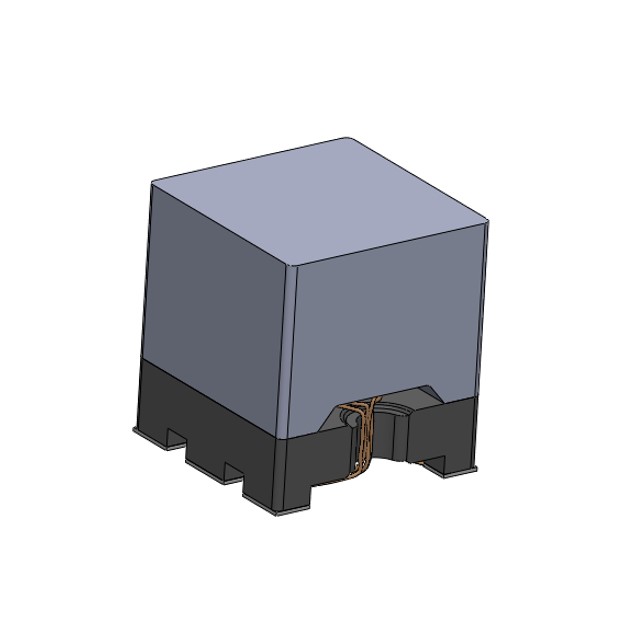

Featured as SPT + CMF solution
Smaller Size
Combine 4 SPT and 4 CMF as a set can be replace for 1 port of traditional Lan filter. It would be reduce the space by 50%, so that engineers can consider more space usage when designing a new product, or even co-layout with LAN Filter.
Flexible Application
Different from traditional Lan filter can only on top layer , SPT + CMF able to choose either bottom or top side.
Stabler Characteristic
The fully automated process provides stabler quality of components which bring our magnetic variability would be smaller.
Compact Size
Characteristics Perfomance
Auto Wind Machine
Auto Twist Machine
